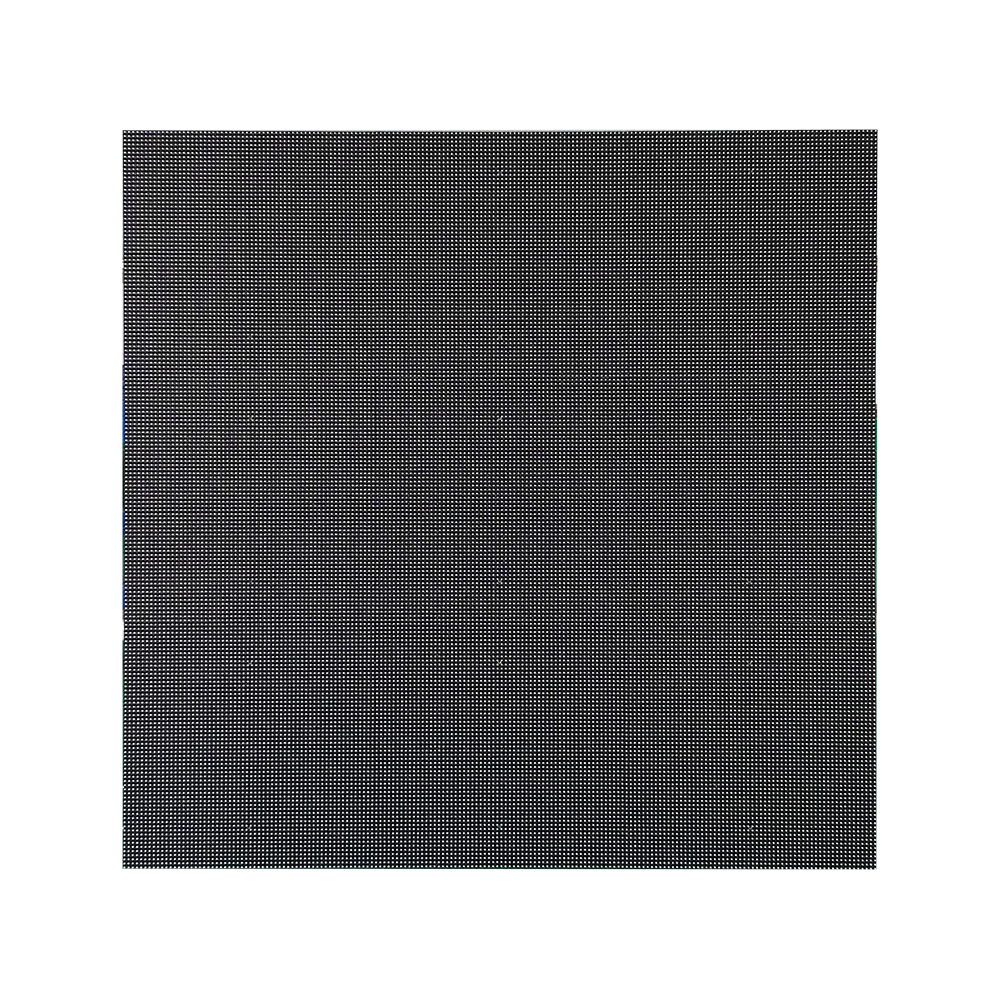

High Brightness P6.67 P8 P10 Full Color Weatherproof Screen Digital Billboard Fixed SMD Led Panel Advertising Led Sign
- Overview
- Related Products
Product Parameters
| Model | FA3.81 | FA5.33 | FA6.67 | FA8 | FA10 |
| Pixel Composition(SMD) | 1921 | 1921 | 2727 | 2727 | 2727 |
| Pixel Density (dots/m²) | 68906 | 35156 | 22500 | 15625 | 10000 |

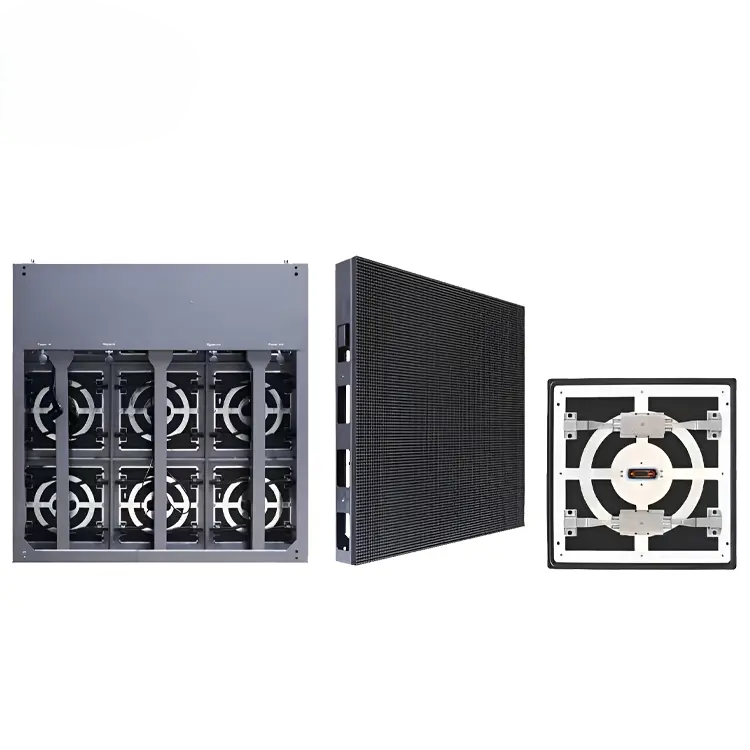

| Module Size(mm) | 320*320*14.5 | 320*320*14.5 | 320*320*14.5 | 320*320*14.5 | 320*320*14.5 |

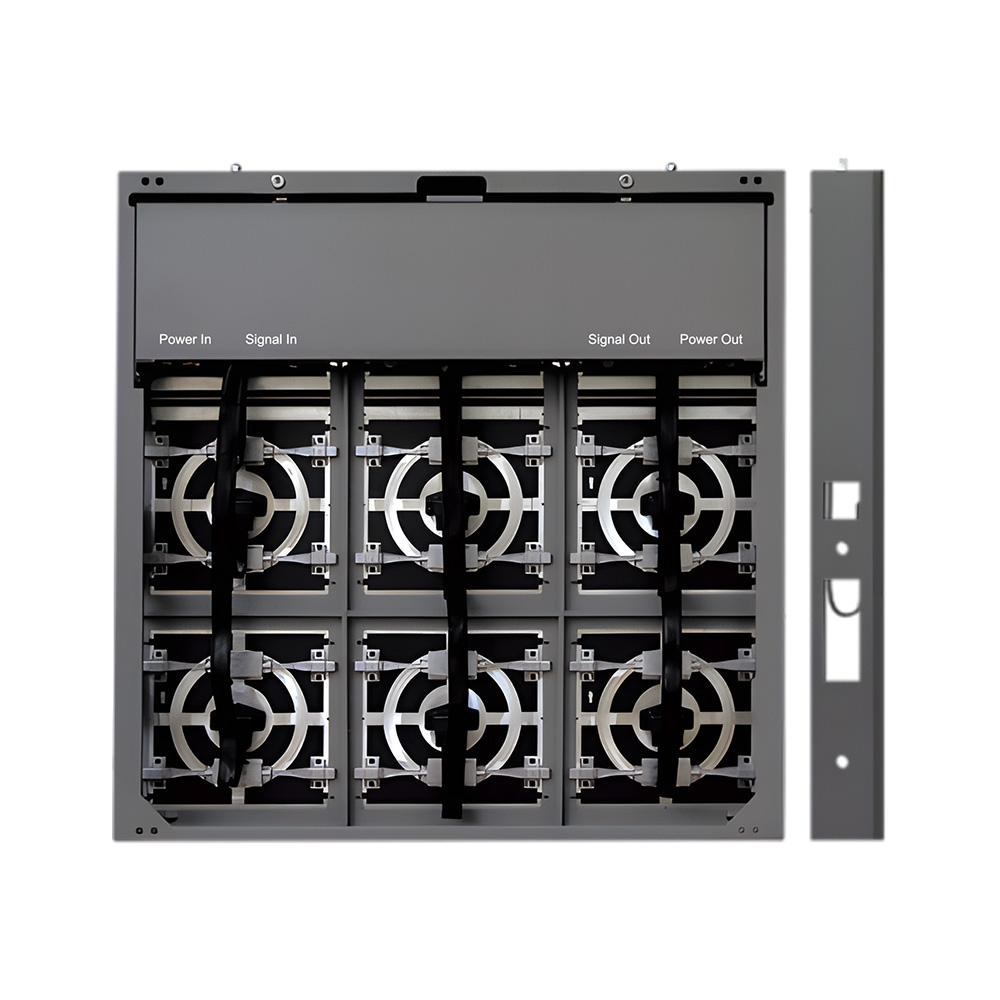

| Cabinet Size(mm) | 960*960*115 | 960*960*115 | 960*960*115 | 960*960*115 | 960*960*115 |
| Cabinet Material | Iron | Iron | Iron | Iron | Iron |
| Cabinet Weight(kg/cabinet) | 35 | 35 | 35 | 35 | 35 |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 |
| White Balance Brightness(nits) | ≥5000 | ≥5000 | ≥5000 | ≥5000 | ≥5000 |
| Color Processor(bit) | 14 | 16 | 16 | 16 | 16 |
| The Max Power Consumption(W/m²) | 550 | 550 | 550 | 550 | 550 |
| Average Power Consumption(W/m²) | 186 | 186 | 186 | 186 | 186 |
| IC Driving(s) | 1/14 | 1/6 | 1/6 | 1/5 | 1/2 |
| Refreshing Ratio(Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Maintenance Method | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
