INDOOR LED

JIUWLDS High Refresh rate Indoor Led Display Screen

320*160
High Flatness
High IP

  • Overview
  • Related Products

jiuwlds high refresh rate indoor led display screen-0

Slim and Lightweight Design
Indoor LED screens use a thin and light cabinet structure, making them easy to install and maintain. The compact design saves space and blends well with modern environments.

jiuwlds high refresh rate indoor led display screen-1

High Resolution and Clarity
With fine pixel pitch options, indoor LED screens deliver sharp and detailed images. They are suitable for applications that require close viewing distance and high visual quality. Refresh rates up to 3840Hz ensure smooth and stable performance.

Wide Color Performance
Advanced LED technology provides a broad color gamut and accurate color reproduction. This ensures vivid and natural images, enhancing the viewing experience for presentations, videos, and digital content.

Energy Efficiency and Long Lifespan
Compared with traditional display technologies, LED screens consume less power and generate less heat. They are designed for long service life, reducing maintenance costs and improving overall reliability.

jiuwlds high refresh rate indoor led display screen-2

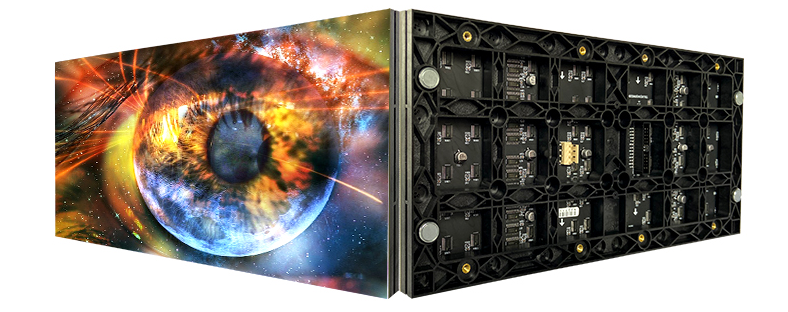

Seamless Splicing
Modules can be joined together without visible gaps, creating a large, continuous display surface for immersive visual impact.

Our LED Module supports seamless splicing, breaks through the limitations of the cabinet, and can assemble the unit board into 2K/4K/8K at will. The large-size led wall meets the needs of different scenes, adopts high-dynamic HDR technology, easily restores the color and contrast, and enhances the viewing experience.

jiuwlds high refresh rate indoor led display screen-3

JIUWLDS LED Display equipped with HDR (High - Dynamic - Range) technology, it delivers a stunning contrast between the darkest blacks and the brightest whites. Colors are more vivid, details are sharper.

jiuwlds high refresh rate indoor led display screen-4

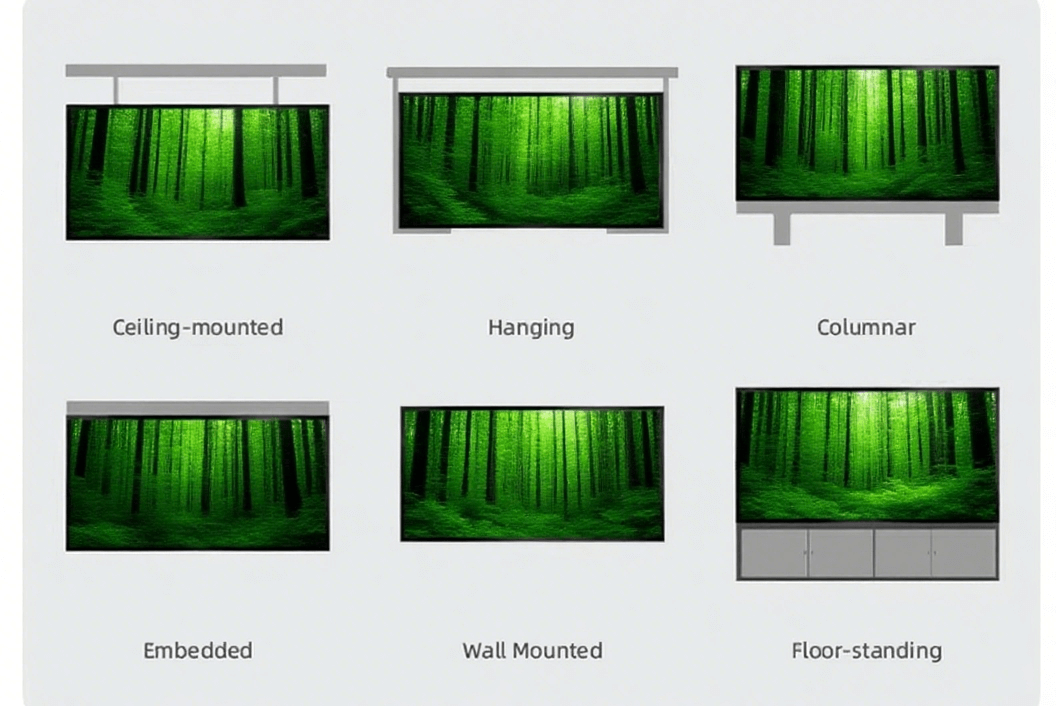

Our indoor display screens support various installation methods, such as Ceiling-mounted, Hanging, Embedded, which can greatly reduce the space. Columnar installation and floor standing are suitable for a big LED billboard.

jiuwlds high refresh rate indoor led display screen-5

Applications

Corporate Meeting Rooms & Boardrooms
Indoor LED display screens deliver clear visuals for video conferencing, presentations, and corporate communication.

Retail Stores & Showrooms
Indoor LED displays capture customer attention with dynamic advertising and product showcases.

Broadcast Studios & Control Rooms
Indoor LED video walls provide seamless viewing for real-time monitoring, broadcasting, and editing without bezel interruptions.

Airports, Train Stations & Transport Hubs
Indoor LED display screens present real-time passenger information and wayfinding signage with high clarity.

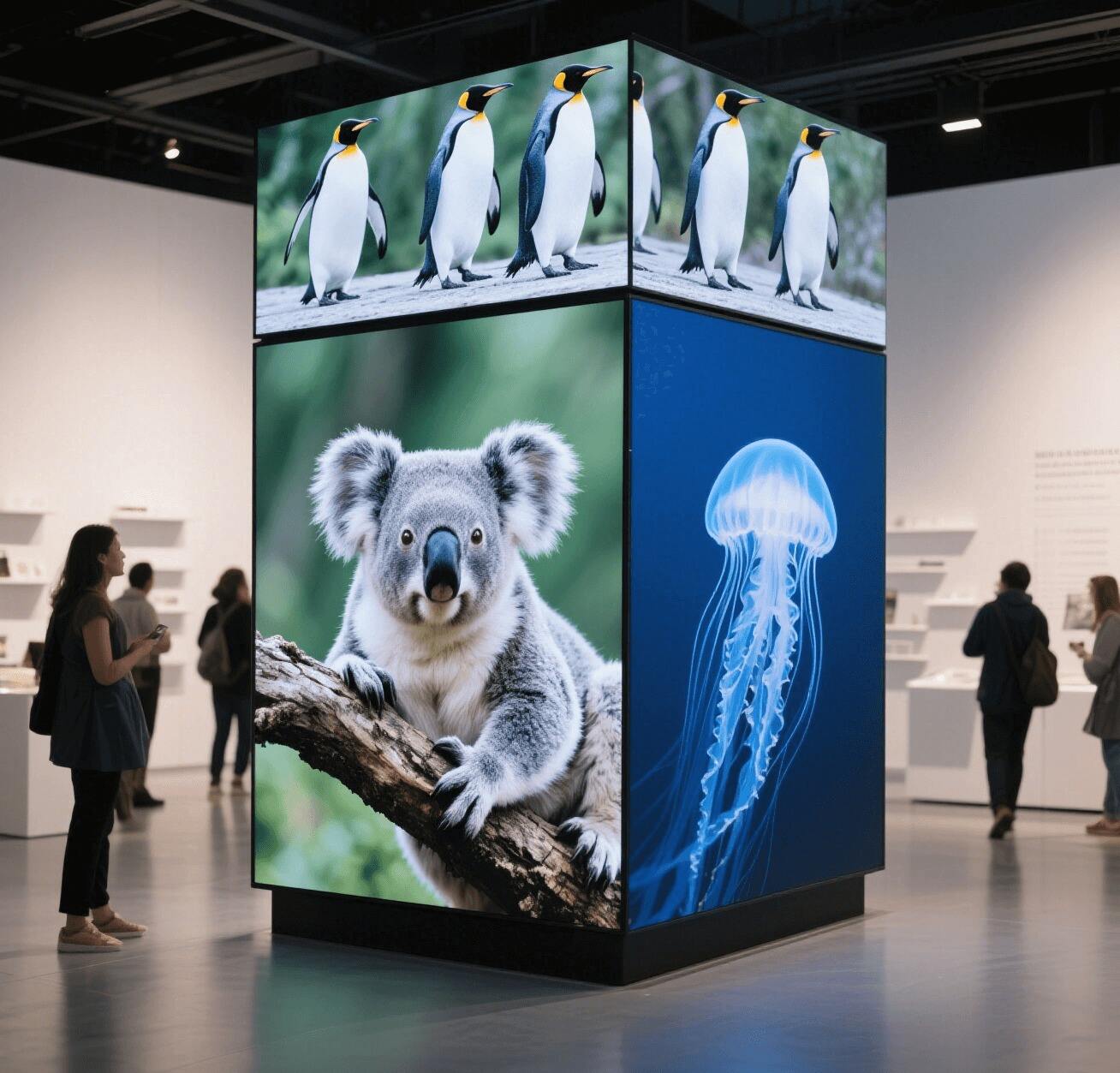

Exhibition Halls & Museums
Indoor LED displays support interactive exhibits and educational content with immersive visuals.

Hospitality Venues & Event Halls
Indoor LED display panels create dynamic backdrops or information boards for events, conferences, and live shows.

Security & Command Centers
Indoor LED video walls enable continuous monitoring of complex data with high precision and 24/7 stability.

Reliable Performance
Indoor LED display screens are designed for long-term operation with low maintenance, ensuring consistent image quality in demanding environments.

jiuwlds high refresh rate indoor led display screen-6

PRODUCT SPECIFICATION

1

Product Name

LED Display Module

2

Product Type

P1.25

P1.53

P1.86

P2.0

P2.5

PHYSICAL PARAMETERS

1

Module Size (mm)

320*160

320*160

320*160

320*160

320*160

2

Resolution (Dots)

256*128

208*104

172*86

160*80

128*64

5

Driving Mode (s)

1/64

1/52

1/43

1/40

1/32

6

Visible Angle (H/ V)

≤150°/130°

≤150°/130°

≤150°/130°

≤150°/130°

≤150°/130°

7

Flatness

≥98%

≥98%

≥98%

≥98%

≥98%

OPTICAL PARAMETERS

1

Brightness

500cd/ m²

500cd/ m²

500cd/ m²

500cd/ m²

500cd/ m²

2

Grey Scale (Bit)

≥16

≥16

≥16

≥16

≥16

3

Color Temperature

5000K~11000K

5000K~11000K

5000K~11000K

5000K~11000K

5000K~11000K

4

Contrast Ratio

≤5000:1

≤5000:1

≤5000:1

≤5000:1

≤5000:1

5

Brightness' adjustment

Manual/Automatic/Program Control

Manual/Automatic/Program Control

Manual/Automatic/Program Control

Manual/Automatic/Program Control

Manual/Automatic/Program Control

PERFORMANCE PARAMETERS

1

Refresh rate (Hz)

≥3840

≥3840

≥3840

≥3840

≥3840

2

Frame Frequency(Fps)

60

60

60

60

60

3

Calibrate Brightness

Pixel  to pixel correction

Pixel  to pixel correction

Pixel  to pixel correction

Pixel  to pixel correction

Pixel  to pixel correction

4

Lose control point of the whole screen

≤0.003%

≤0.003%

≤0.003%

≤0.003%

≤0.003%

ADAPTATION SCENARIO

1

Operating ambient temperature

-20℃~60℃

-20℃~60℃

-20℃~60℃

-20℃~60℃

-20℃~60℃

2

Operating ambient humidity

35%~75%RH

35%~75%RH

35%~75%RH

35%~75RH

35%~75%RH

3

Usage scenarios

Indoor

Indoor

Indoor

Indoor

Indoor

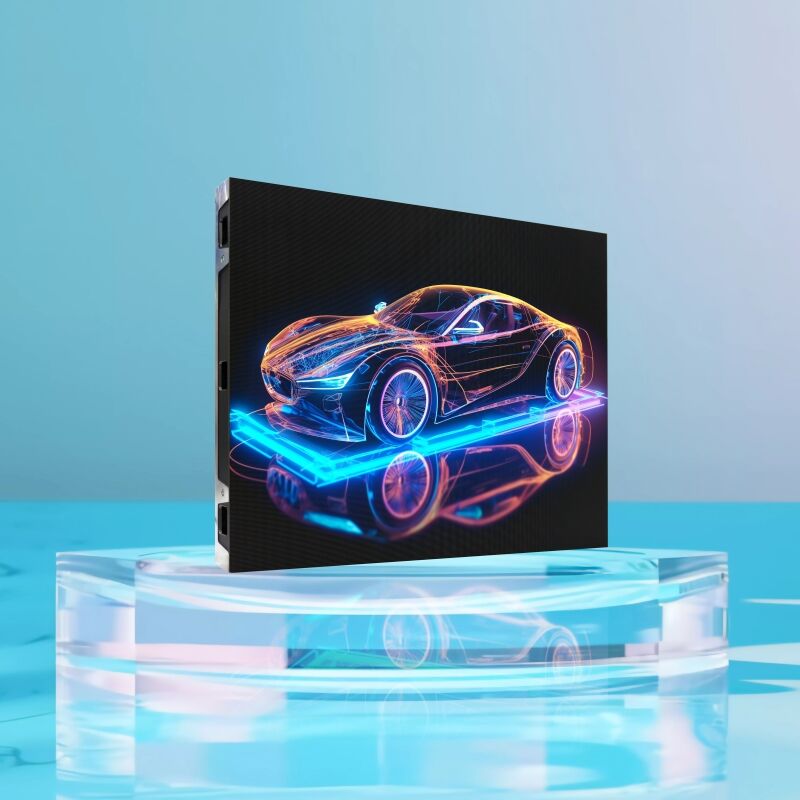

ADAPTATION CABINET

1

Cabinet Size (mm)

640*480*63.5

640*480*63

640*480*63

640*480*63

640*480*63

2

Resolution (Dots)

512*384

416*312

344*256

320*240

256*192

jiuwlds high refresh rate indoor led display screen-7

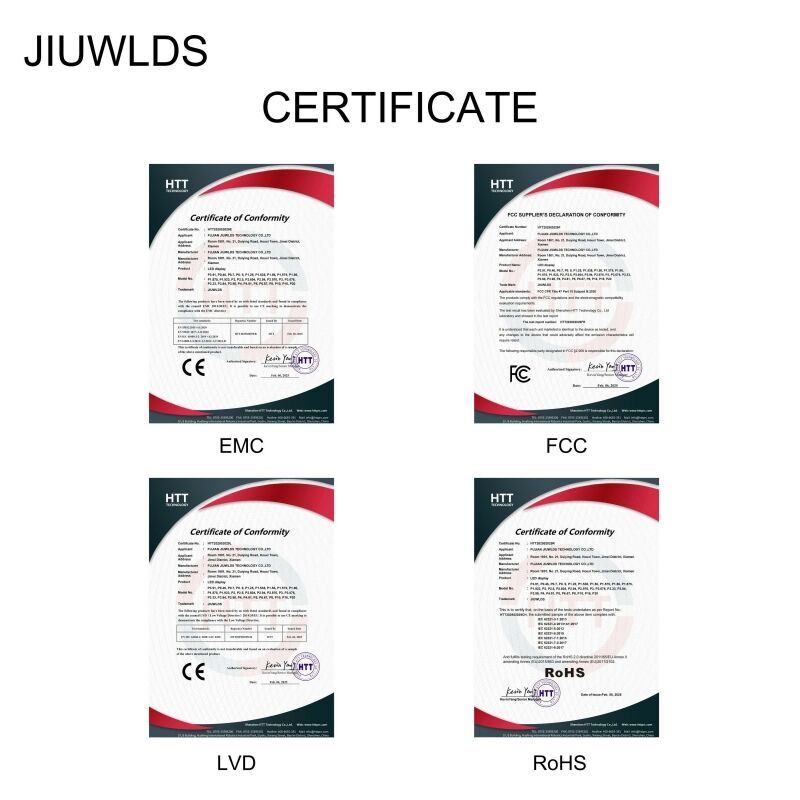

JIUWLDS complies with ROHS, FCC, and CE certifications etc, reflecting our commitment to international quality standards.

jiuwlds high refresh rate indoor led display screen-8

We offer a 2-5-year warranty on our LED  products, ensuring our displays can stand the test of time.Each product undergoes a rigorous 72-hour aging test before delivery to demonstrate its quality and reliability.

jiuwlds high refresh rate indoor led display screen-9

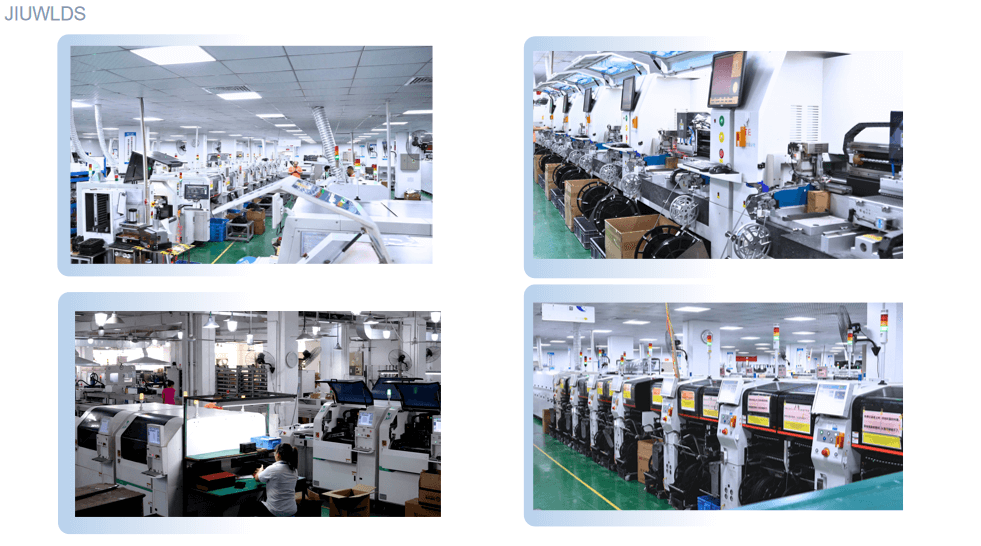

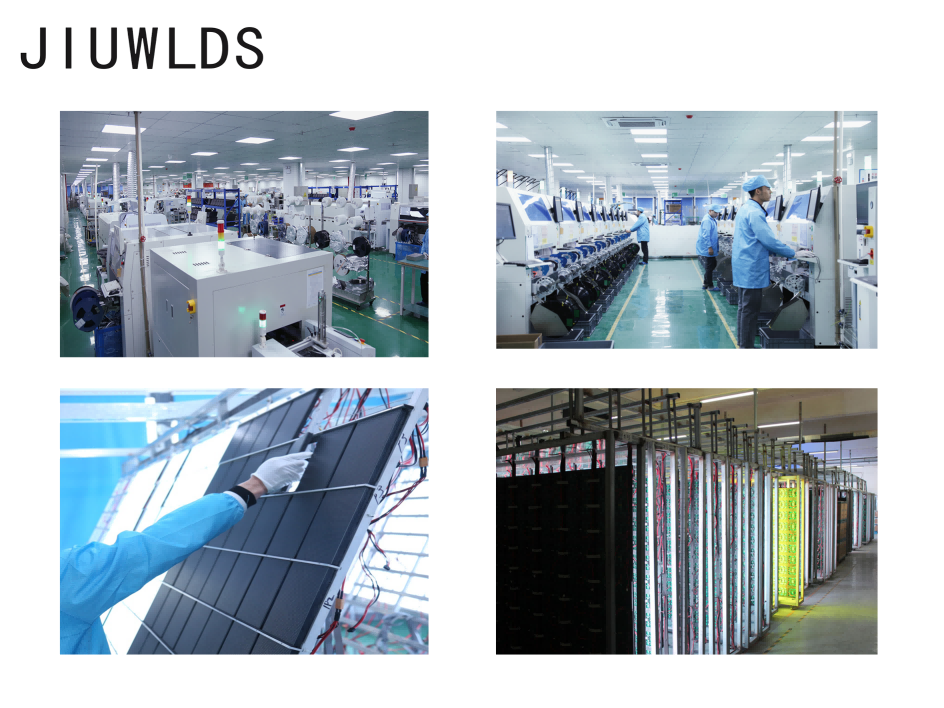

Our Monthly Production Capacity is more than 30000 SQM which allowes us to achieve the fast delivery:1-10 weekdays. JIUWLDS’strong production capacity enables JIUWLDS to meet customer needs in a short time and seize the market opportunities.

jiuwlds high refresh rate indoor led display screen-10

JIUWLDS provides complete and customized LED display solutions.
Based on your application scenario, we recommend the most suitable products for you and design appropriate installation methods according to the site size and conditions.

During production, we implement strict quality control at every stages—from raw materials to final products.

After shipping, we track logistics in real time and keep you updated.

If you encounter any questions ,please feel free to contact us. We are pleased to help you. JIUWLDS offers 24/7 online support, and our technicians are ready to assist you at any time.

jiuwlds high refresh rate indoor led display screen-11

Q1: If I need different measurements or weight, could you offer OEM service?

A: Sure, we can provide OEM service, also we can make new mould for your LED product, attaching your name brand. But you need pay for the tooling cost for the new mould.

Q2: How can I get some samples?

A: We can provide samples, but you'll need to cover the shipping costs. Let us know if you're interested!

Q3: Does your price valid all the time?

A: Because the cost and exchange rate changing rapid, so all of our quotation for you is valid within 15 day. If you need any updated price, please feel free to contact us.
