Our indoor LED video walls are widely used in indoor spaces such as corporate lobbies, conference rooms, lecture halls, and brand display areas. They feature high refresh rates, low power consumption, and compatibility with both synchronous and asynchronous control systems, including mobile APP operation.
These displays support multiple video formats and deliver bright, sharp images with consistent quality and long service life. High-resolution LED walls—whether for indoor or outdoor use—offer true-to-life colors, reliable performance, seamless splicing, and excellent screen flatness. Using advanced technologies such as SMD, COB, they ensure stable operation and impressive visual impact for various applications.
High Resolution
The LED screen supports high resolution, showing fine details and smooth images. The refresh rate can reach up to 3840Hz, making it ideal for high-quality content display.

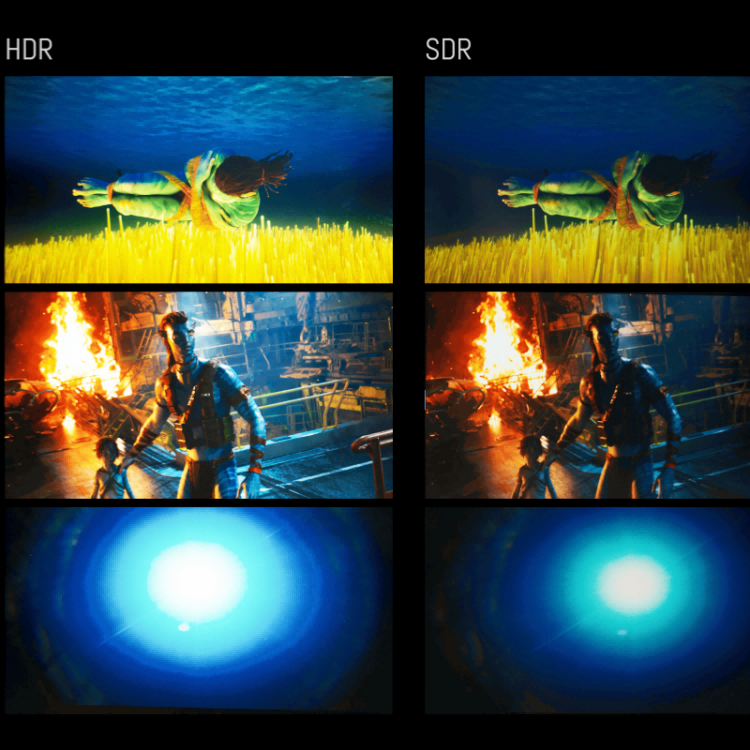

HDR visuals
HDR displays a wider color range between black and white compared to SDR, which means richer colors and higher contrast. With High Dynamic Range (HDR) technology, our LED displays surpass the limitations of standard Dynamic Range (SDR) by offering a wider color range and higher contrast. This advancement has resulted in richer, more vibrant colors and enhanced details, from the deepest blacks to the brightt white.
Color calibration
Advanced thermal effect calibration technology provides the ideal solution for the bluing phenomenon that occurs after the temperature rises. This innovative feature ensures consistent color accuracy and performance, maintaining the integrity of the display's visual quality even under varying thermal conditions.
Low Energy Consumption
Compared to LCD or plasma displays, LED panels use less power, helping users save on electricity costs while providing long-lasting performance.

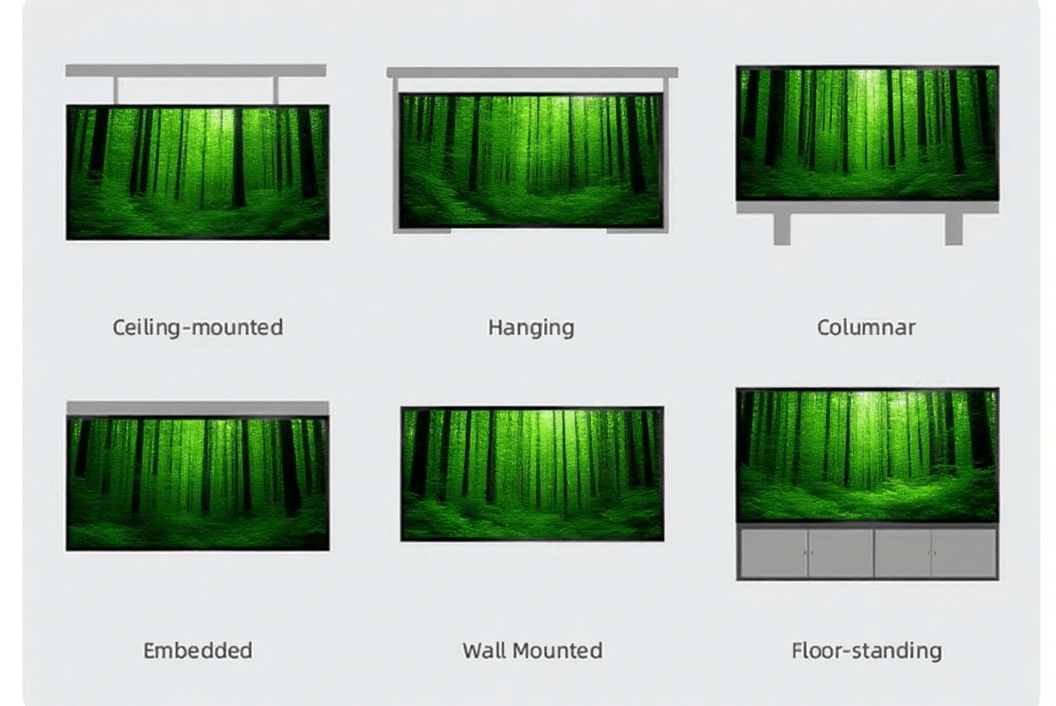

Installation
Our indoor display screens support various installation methods, such as Ceiling-mounted, Hanging, Embedded, which can greatly reduce the space. Columnar installation and floor standing are suitable for a big LED billboard.

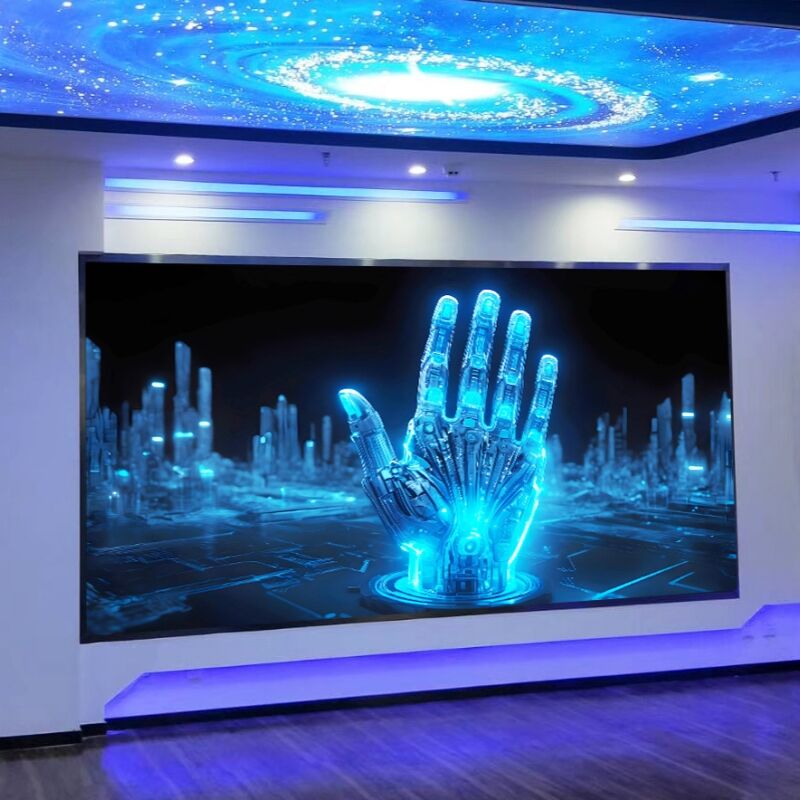

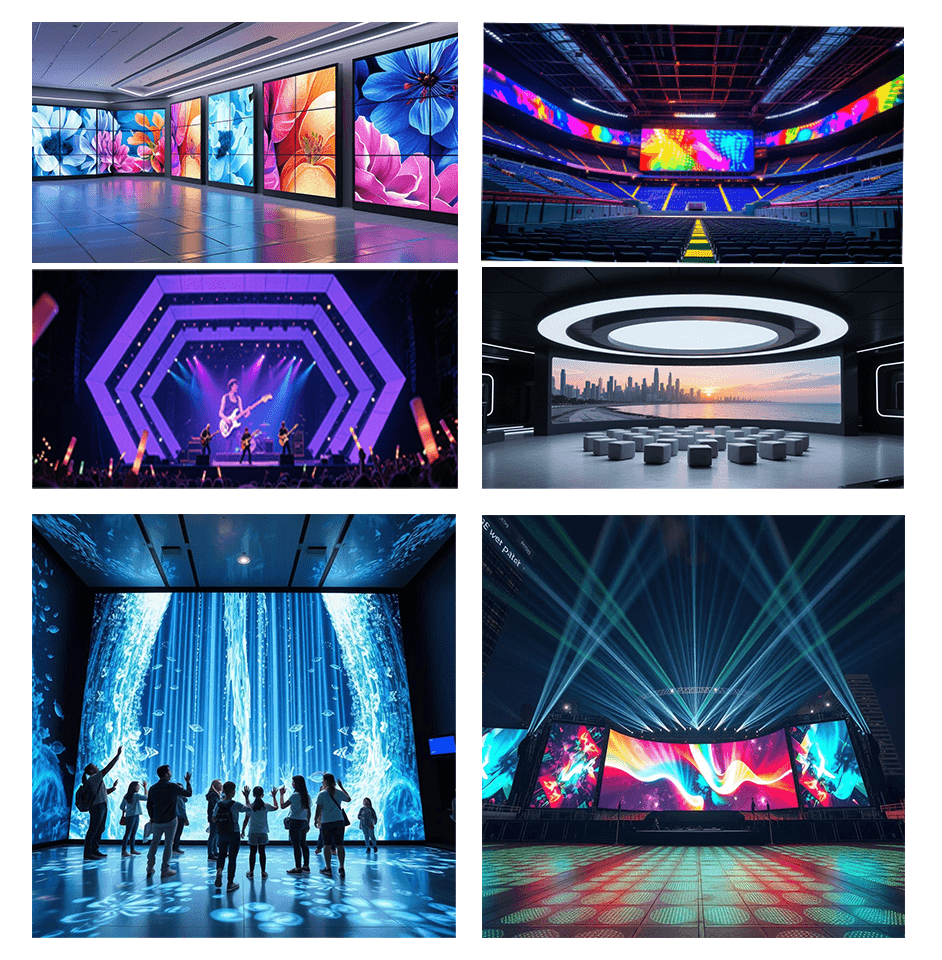

Applications
Dynamic Advertising
Indoor LED displays are ideal for presenting vivid content in shopping malls, retail stores, and other commercial spaces. They can show videos, animations, and updates that attract attention and deliver marketing messages effectively.
Interactive Experiences
LED screens can be used to create engaging storefronts or digital showcases. They support touch interaction and integration with new technologies, helping brands connect with customers in more personalized ways.
Information Display
In large indoor venues such as malls, airports, and stations, LED screens work well as information boards. They provide real-time updates, maps, promotions, and safety messages, making navigation and communication easier for visitors.

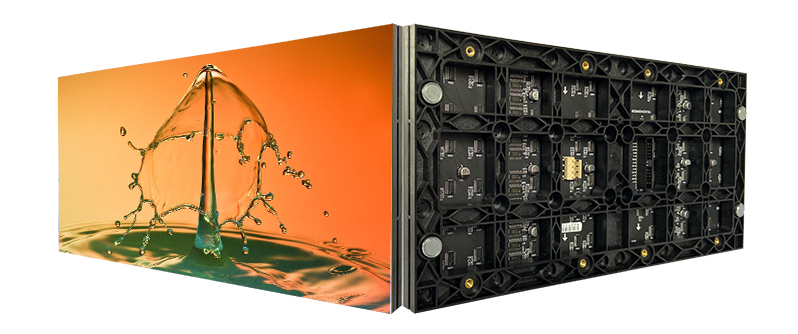

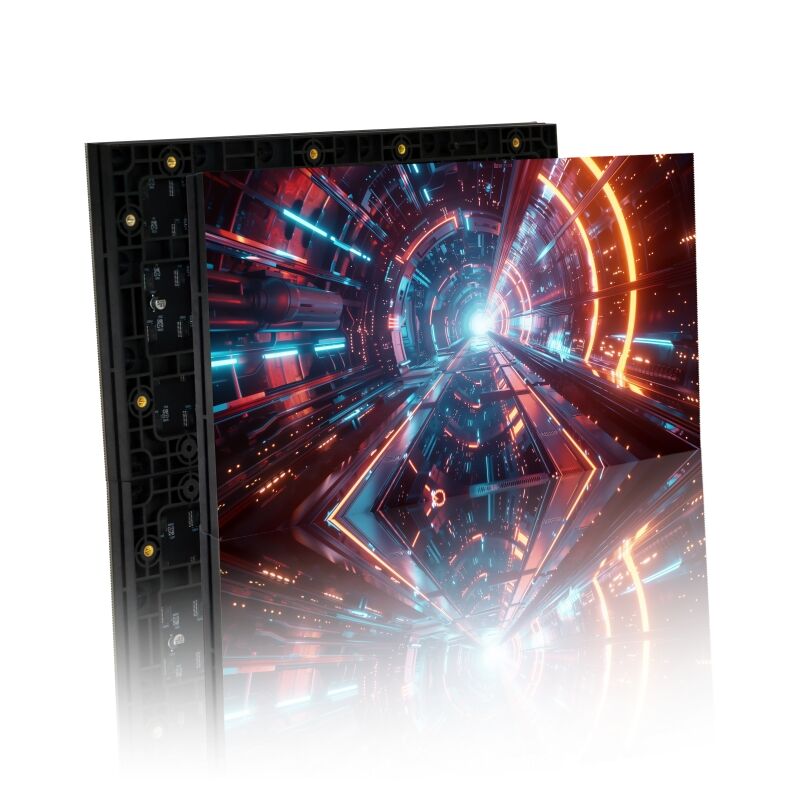

． PRODUCT SPECIFICATION | ||||||
1 |
Product Name |
LED Display Module |
||||
2 |
Product Type |
P1.25 |
P1.53 |
P1.86 |
P2.0 |
P2.5 |
PHYSICAL PARAMETERS | ||||||
1 |
Module Size (mm) |
320*160 |
320*160 |
320*160 |
320*160 |
320*160 |
2 |
Resolution (Dots) |
256*128 |
208*104 |
172*86 |
160*80 |
128*64 |
5 |
Driving Mode (s) |
1/64 |
1/52 |
1/43 |
1/40 |
1/32 |
6 |
Visible Angle (H/ V) |
≤150°/130° |
≤150°/130° |
≤150°/130° |
≤150°/130° |
≤150°/130° |
7 |
Flatness |
≥98% |
≥98% |
≥98% |
≥98% |
≥98% |
OPTICAL PARAMETERS | ||||||
1 |
Brightness |
500cd/ m² |
500cd/ m² |
500cd/ m² |
500cd/ m² |
500cd/ m² |
2 |
Grey Scale (Bit) |
≥16 |
≥16 |
≥16 |
≥16 |
≥16 |
3 |
Color Temperature |
5000K～11000K |
5000K～11000K |
5000K～11000K |
5000K～11000K |
5000K～11000K |
4 |
Contrast Ratio |
≤5000:1 |
≤5000:1 |
≤5000:1 |
≤5000:1 |
≤5000:1 |
5 |
Brightness' adjustment |
Manual/Automatic/Program Control |
Manual/Automatic/Program Control |
Manual/Automatic/Program Control |
Manual/Automatic/Program Control |
Manual/Automatic/Program Control |
PERFORMANCE PARAMETERS | ||||||
1 |
Refresh rate (Hz) |
≥3840 |
≥3840 |
≥3840 |
≥3840 |
≥3840 |
2 |
Frame Frequency(Fps) |
60 |
60 |
60 |
60 |
60 |
3 |
Calibrate Brightness |
Pixel to pixel correction |
Pixel to pixel correction |
Pixel to pixel correction |
Pixel to pixel correction |
Pixel to pixel correction |
4 |
Lose control point of the whole screen |
≤0.003% |
≤0.003% |
≤0.003% |
≤0.003% |
≤0.003% |
ADAPTATION SCENARIO | ||||||
1 |
Operating ambient temperature |
-20℃～60℃ |
-20℃～60℃ |
-20℃～60℃ |
-20℃～60℃ |
-20℃～60℃ |
2 |
Operating ambient humidity |
35％～75％RH |
35％～75％RH |
35％～75％RH |
35％～75RH |
35％～75％RH |
3 |
Usage scenarios |
Indoor |
Indoor |
Indoor |
Indoor |
Indoor |
ADAPTATION CABINET | ||||||
1 |
Cabinet Size (mm) |
640*480*63.5 |
640*480*63 |
640*480*63 |
640*480*63 |
640*480*63 |
2 |
Resolution (Dots) |
512*384 |
416*312 |
344*256 |
320*240 |
256*192 |
About us
JIUWLDS Technology Company, established in 2003 in Xiamen, China, is one of the distinguished high-tech enterprise specializing in LED tech.
JIUWLDS provides customized and comprehensive LED Display solutions and industry-leading quality. We also supports 100% customization of various of displays.
At JIUWLDS, customer satisfaction is our top priority. We offer a 2-5-year warranty on our LED products, ensuring our displays can stand the test of time.

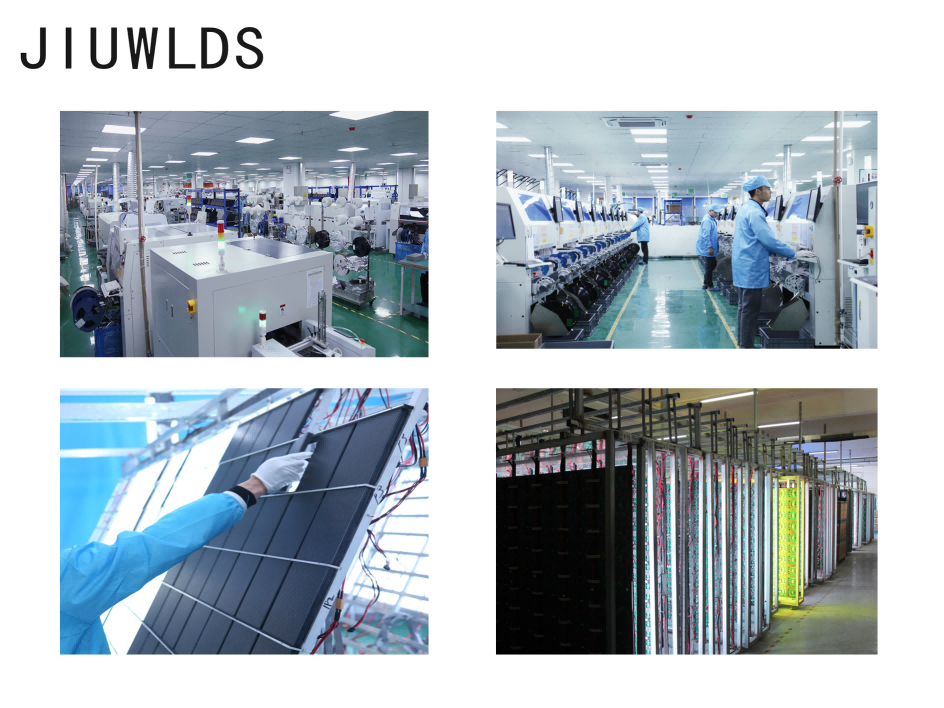

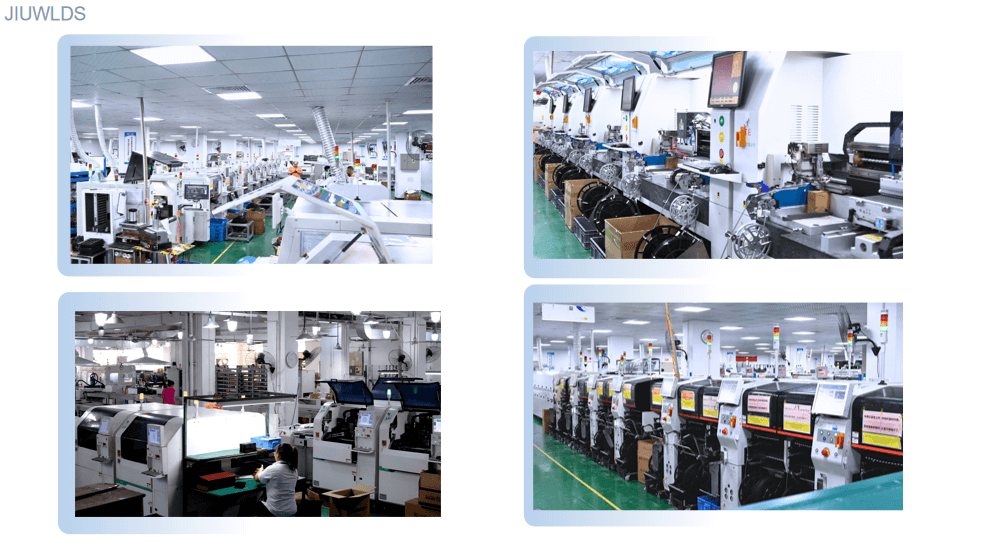

Our Monthly Production Capacity is more than 30000 SQM which allowes us to achieve the fast delivery:1-10 weekdays.
Each product undergoes a rigorous 72-hour aging test before delivery to demonstrate its quality and reliability.
JIUWLDS complies with ROHS, FCC, and CE certifications etc, reflecting our commitment to international quality standards.
The combination of high-quality led advertising products, good customer service, and competitive pricing has earned us the trust and loyalty of our customers.
We believe in building strong, win-win partnerships and warmly invite you to contact us for customized solutions and to explore cooperation opportunities.
Q1:How much is the shipping cost?
A: The shipping cost is determined by the screen size, and the item information is subject to inquiry.
Q2: How to operate and use it?
A: It can be easily controlled via PC and smartphone. Please contact us for more information. We offer video guidance and remote assistance.
